Atlas X Dash Cam

Includes 32GB Micro-SD card

Atlas X - 1 CH
Atlas X - 1 CH

£136.00
(inc VAT) plus £84 installation

1 Channel Dash Cam.

Atlas X - 1 CH
Atlas X - 1 CH

£136.00
(inc VAT) plus £84 installation

1 Channel Dash Cam.

Atlas X -2 CH
Atlas X -2 CH

£179.00
(inc VAT) plus £140 installation

2 Channel Dash Cam. Same features as Atlas X with additional rear camera.

Atlas X -2 CH
Atlas X -2 CH

£179.00
(inc VAT) plus £140 installation

2 Channel Dash Cam. Same features as Atlas X with additional rear camera.

mobilesystems

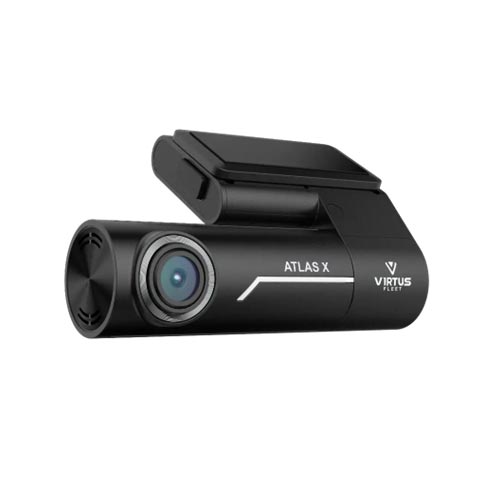

The Atlas X dash cam for cars and other vehicles records in 1080p Full HD with HDR for clear footage. It uses loop recording, overwriting old files when storage is full, and offers memory prioritisation for driving, events, or parked mode. A built-in G-sensor marks videos as events in case of impacts or sudden movements, making it easier to locate key moments. The camera connects to smartphones via Wi-Fi for easy control and access to recordings and driving stats. It also features a parking mode (motion detection or time-lapse) to capture incidents while the vehicle is unattended.

Additionally, the Cyclops™ system provides real-time Speed & Safety Alerts, using patented technology for accurate geo-corridors and minimising false alerts. The Cyclops database covers all camera types and is updated every six months, enhancing reliability in complex urban areas and with mobile safety camera zones.

Approvals and Certification: CE, UKCA, RoHS, FCC


Specifications

CIS/ Resolution Front: Sony Starvis (IMX307) (1920 X 1080 @ 30fps)
Rear : CMOS Sensor
LCD No  LCD
Memory Card Micro SD Card (16GB/32GB/64GB/128GB/256GB)
LED
Indicators
Front : Security & Status LED
Rear: Security  LED
Speaker Built-in Speaker  (Voice Guide)
Video Codec H.264 High Profile
Weight Front : 107.Sg
Rear: 28.0g
Operating Temp -20°C  -  70°C (-4°F  - 158°F)
View Angle Front : (D)l45.2° X  (H)ll7° X  (V)59.5°
Rear : (D)l28° X  (H)l0S.7° X  (V)55.2°
GPS Yes
Wi-Fi External Wi-Fi (USB Dongle Type)
G-Sensor 3-Axis  Acceleration Sensor,
+2g  I -2g
Microphone Built-in Microphone
Recording Mode Normal /  Event/ Manual / Parking (Motion & Time Lapse)
Power Consumption Input DC 12V  -  24V Max. 4.0W (12V)
High Temp. Cut-Off Approximate  70°C (158°F) Battery Discharge Prevention
Dimension Front : 112mm(W) x 72mm(H) x 35mm(D)
Rear : 52.0mm(W) x 29.0mm(H) x 42.0mm(D)

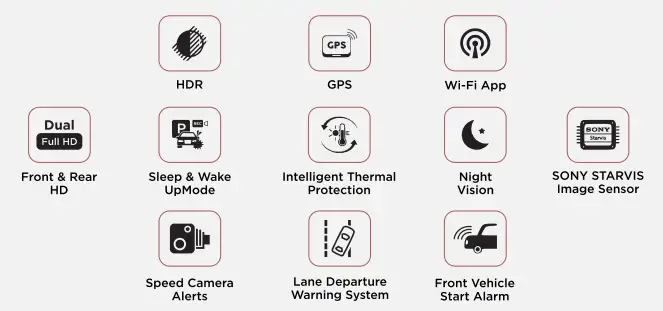

Features

Recording Mode Normal/ Event/ Manual/ Parking
Features
  • HDR /  Night Vision
  • Battery Discharge Prevention
  • Sleep & Wake-Up (Parking Mode Only)
  • High-Temperature Cut-Off
  • PC Viewer & App  Wi-Fi
  • Motion & Time Lapse (Parking Mode Only)
Speed Camera Alert Red Light and Fixed Speed Camera
Alert  when approaching a fixed speed and red light camera
Mobile Speed Camera  Zone
Alert when approaching an area where mobile speed cameras
Average Speed Zone
Alert  when approaching an average speed zone
ADAS 1. LDWS
-   Operating speed 50km/h or higher
-   Alert delay time : 3 seconds
2. FVSA
-   Operating speed 0km/h (Stopped)
-   Alert delay time : 10 seconds
